HP-B Hydraulic Pump Test Bench | High-Precision Hydraulic Pump Tester

  • {HP-B Hydraulic Pump Test Bench | High-Precision Hydraulic Pump Tester}
  • {HP-B Hydraulic Pump Test Bench | High-Precision Hydraulic Pump Tester}
  • {HP-B Hydraulic Pump Test Bench | High-Precision Hydraulic Pump Tester}
  • {HP-B Hydraulic Pump Test Bench | High-Precision Hydraulic Pump Tester}

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

Details

HP-B Hydraulic Pump Test Bench | High-Precision Hydraulic Pump Tester

Product Description

HP-B is a Professional Hydraulic Pump Test Bench allows precise flow, pressure, and performance testing

Hydraulic Pump Tester ensures accurate calibration and diagnostics.

Real-time data display on touchscreen interface.

Compatible with various types of hydraulic pumps.

Robust construction for workshop and industrial use.

Data recording and export for professional reporting.

Difference from multifunctional hydraulic system test benches, the HP-B offers a more detailed and comprehensive approach to hydraulic pump handling, rendering it a more specialised solution.


Scene Images

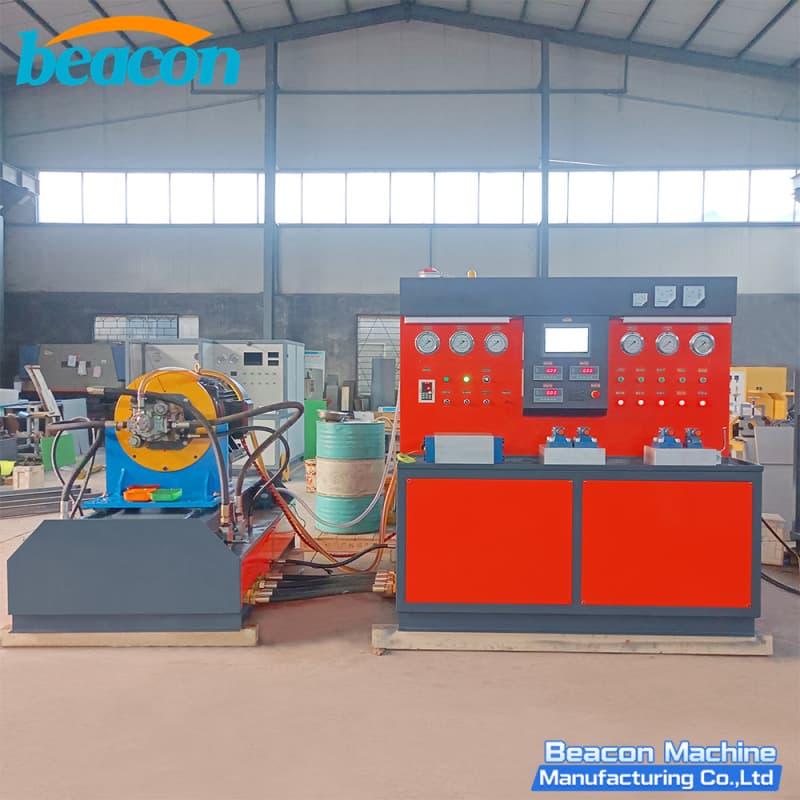

HP-B Hydraulic Pump Test Bench

Hydraulic Pump Tester

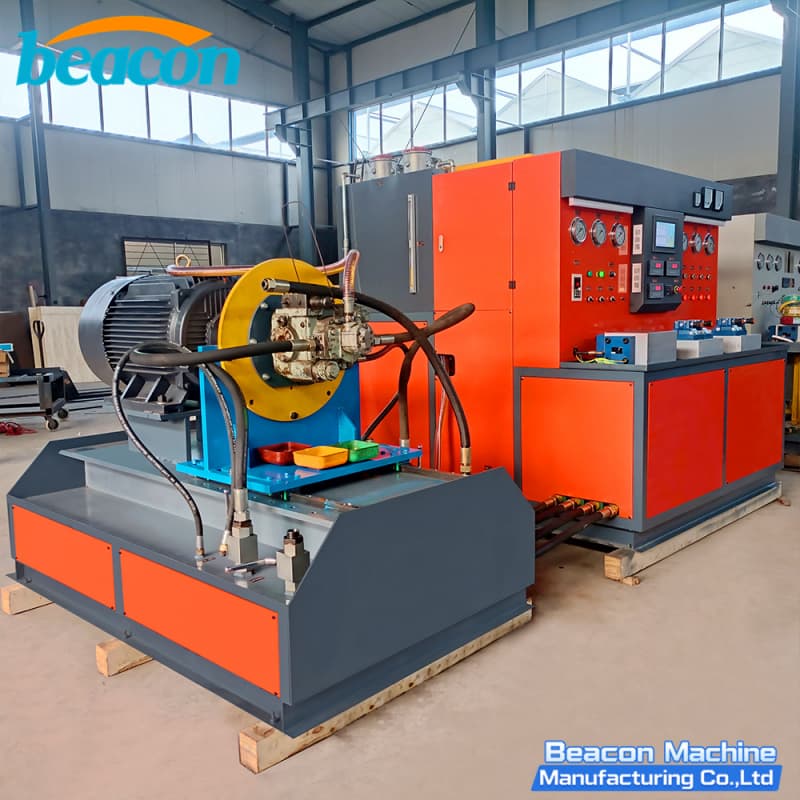

Hydraulic Pump Diagnostics

Detail Images

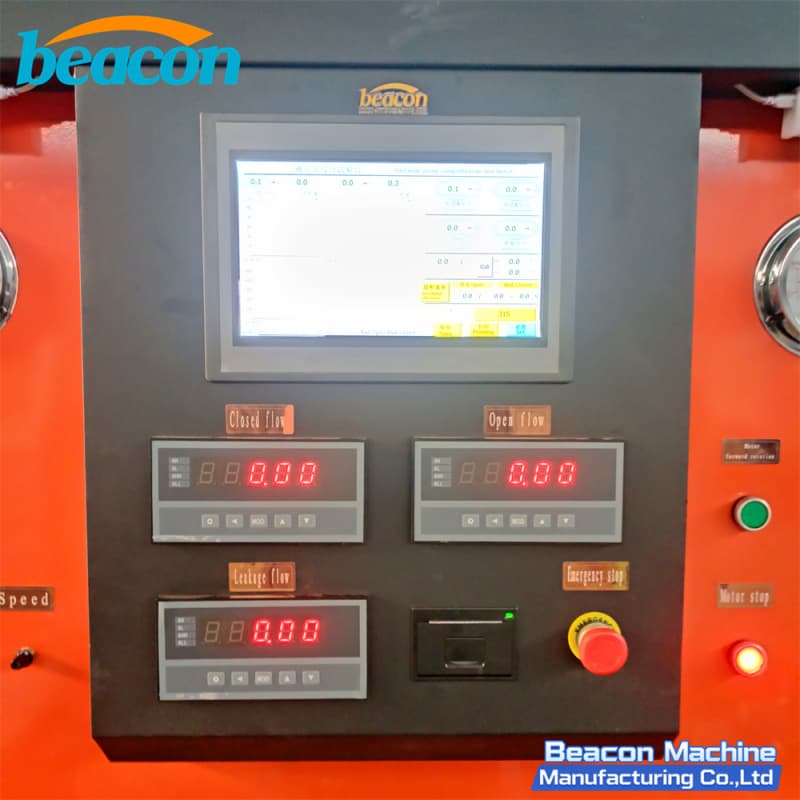

Hydraulic Pump Calibration

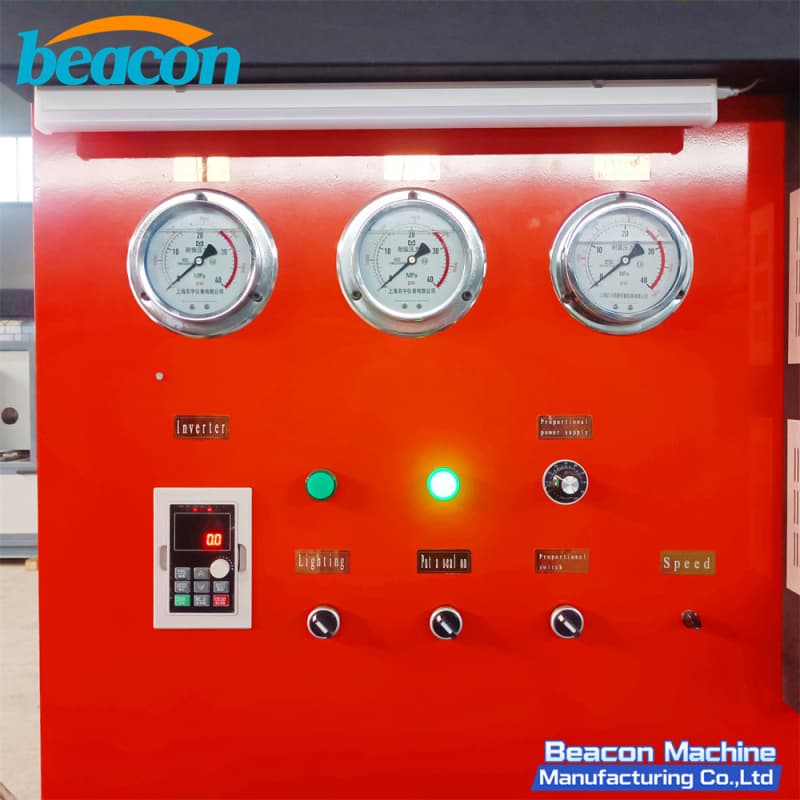

Pump Testing Machine

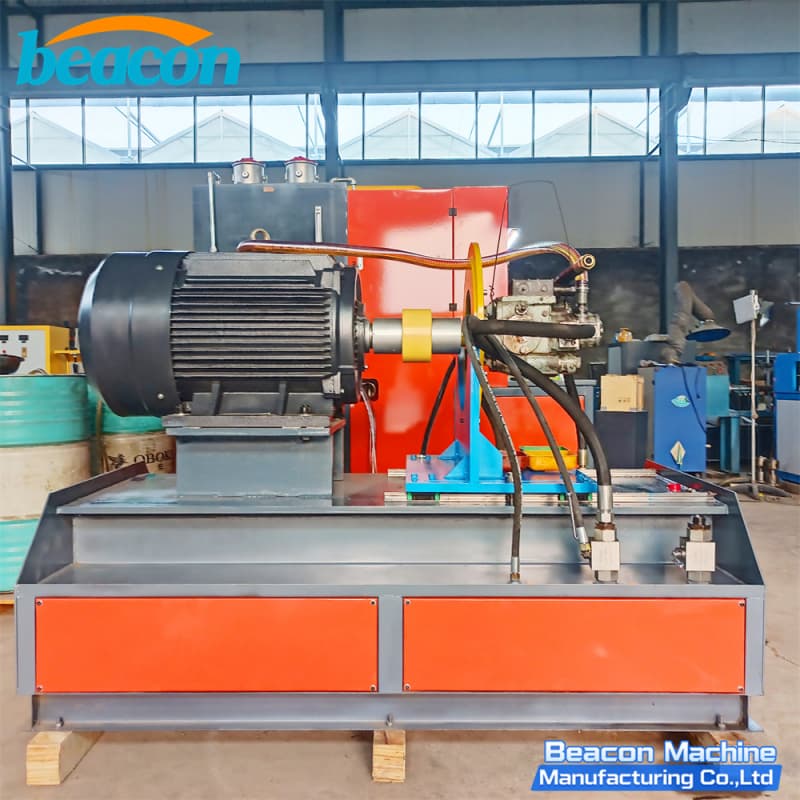

, Industrial Pump Test Bench



parameter

ParameterSpecification
Test TypeHydraulic pump flow, pressure, and calibration
Maximum Pressure400 bar
Flow Range0 – 200 L/min
VoltageAC 220V / 50Hz
Display10-inch touchscreen
Supported PumpsGear, vane, and piston hydraulic pumps
Data StorageBuilt-in memory + USB export
Dimensions (L×W×H)900 × 700 × 750 mm
Weight120 kg
Environment0 &ndash; 40&deg;C, humidity<85%
